San Ramon · Designer / Integrated / PRO columns
Sub-Zero Designer, Integrated & PRO Column Repair in San Ramon
Sub-Zero column refrigerators and freezers — the tall, single-temperature IT-, DET-, IC-24 and PRO-48 units that flank an island or run side by side as a paired set — are the showpiece of most upgraded San Ramon kitchens. When one drifts warm or leaks at the floor, the fix is almost always diagnostic-first, and the column rarely has to leave its cabinet.
Direct answer
Sub-Zero Designer, Integrated and PRO columns most often drift warm from a dirty condenser, a failing evaporator fan, or a drifting thermistor — not a dead compressor. We read the model tag inside the cabinet left of the upper drawer, measure before we quote, and service panel-ready columns in place. Call (925) 940-3576.
What a column is
Columns are different from a built-in side-by-side
A Sub-Zero column is a single tall cabinet that does one job: an all-refrigerator column or an all-freezer column, each with its own sealed system and controls. In San Ramon kitchens you most often see them as a matched pair — a 30-inch refrigerator column next to an 18- or 24-inch freezer column — wearing custom panels that match the surrounding millwork so the appliance disappears into the cabinetry.
That design has three practical consequences for a repair visit. First, each column is its own system, so a warm fridge column tells you nothing about the freezer column beside it. Second, the controls, fan, and thermistor live in a tight integrated chassis rather than a wide built-in, so symptoms read a little differently. Third, the custom front is the whole point — keeping it intact is exactly why owners in Dougherty Valley, Gale Ranch, and Norris Canyon Estates repair these units instead of replacing them. Our cabinet-safe service approach is built around protecting that millwork.
- Designer Tall (IT-, DET-) — integrated tall refrigerator and freezer columns.
- IC-24 — integrated column platform in the 24-inch family.
- PRO-48 — the pro-style 48-inch stainless unit with the dual compressor / column-style layout.
Find the tag first
Where the model tag hides on a column
Every accurate column repair starts with the real model and serial number, because the evaporator fan motor, thermistor, damper, and control board are matched to the exact unit. On Designer Tall and Integrated columns, the tag is inside the cabinet, on the wall to the LEFT of the upper drawer or shelf rail — not near the door hinge where built-in BI and Classic French-door owners expect it. Open the door, look at the left interior sidewall up high, and you will find the printed model/serial plate.
A clear phone photo of that plate beats a number read aloud over the line nearly every time — IT-, DET-, IC- and PRO designations are easy to mishear. Send the photo when you book and we arrive with the right fan motor, thermistor, or gasket already pulled for your unit. If you want the full map for every Sub-Zero body style, see the model-number guide and the photo checklist.
The four real faults
What actually goes wrong on a San Ramon column
Across Tri-Valley homes, column complaints cluster into four patterns. Reading the symptom correctly before anyone touches the sealed system is what keeps a $300 fan job from being misdiagnosed as a $1,200 compressor.
- Temperature fluctuation (a few degrees of drift). Usually a condenser choked with hillside dust, a weak evaporator fan motor, or a drifting thermistor reporting the wrong temperature to the board — not a failed compressor. See the not-cooling diagnostic.
- Ice building up inside a freezer column. Points to a defrost-cycle fault — heater, defrost thermostat, or control — letting the evaporator frost over and slowly choke airflow.
- Water pooling under the column. Classic defrost-drain leak: the drain line clogs or freezes, so meltwater overflows onto the floor instead of evaporating at the condenser pan.
- Interior lights off when the door is held open. By design — columns disable the LED lighting after the door is ajar for a set time to protect the LEDs and your food, not a fault to chase.
One detail that matters in San Ramon specifically: a single thermometer reading taken on a 100°F Diablo Valley afternoon is noise, not a verdict. A healthy column will legitimately drift one or two degrees on the hottest days in Gale Ranch and Windemere kitchens, then recover overnight once the room cools — that is heat load, not a failed part. The reading that tells the truth is the overnight one taken in a cool kitchen, untouched. If a fridge column is still warm at six in the morning with the house cool, that is a real fault worth a visit; if it has recovered on its own, the unit is fine and you have saved yourself a service call. We ask Canyon Lakes and Twin Creeks owners to jot a couple of readings before we roll a truck for exactly this reason.
The table below maps each symptom to its likely cause and the realistic repair band before any flat quote is approved.
| Symptom you see | Most likely cause | Realistic repair band |
|---|---|---|
| Temperature drifts a few degrees | Dirty condenser, weak evaporator fan, or drifting thermistor | $200–$650 (non-sealed) |
| Ice/frost building in a freezer column | Defrost heater, defrost thermostat, or control fault | $250–$650 |
| Water pooling on the floor under the unit | Clogged or frozen defrost drain line | $200–$500 |
| Lights off while door held open | Normal LED-protection behavior (by design) | No repair needed |
| Both compartments warm / long run / loud | Sealed-system or compressor fault | $900–$1,800 (warranty may apply) |
Why San Ramon is hard on columns
Diablo heat, hillside dust, and DSRSD water
Columns run a compact condenser in a tight integrated chassis, which makes them unusually sensitive to local conditions. When inland temperatures climb toward 100°F—and heat waves push past 105°F—the condenser works far harder to dump heat, and any coil that is even half-blocked starts letting the box drift warm. Offshore Diablo winds then drive fine dust off the Dougherty Valley and Norris Canyon hillsides, and wildfire-season ash from the Diablo Range can blanket a condenser intake in a matter of days.
That is why we tell column owners across San Ramon to clean the condenser every 3–6 months here, not the textbook 6–12. On the water side, moderately hard supply from DSRSD (via Zone 7) scales an ice-maker inlet valve and shortens filter life, so freezer-column ice problems often trace back to water chemistry, not the ice maker itself. Read more on the Dougherty Valley dust and heat load and the San Ramon hard-water guide, or keep ahead of it with a maintenance calendar.
How the visit runs

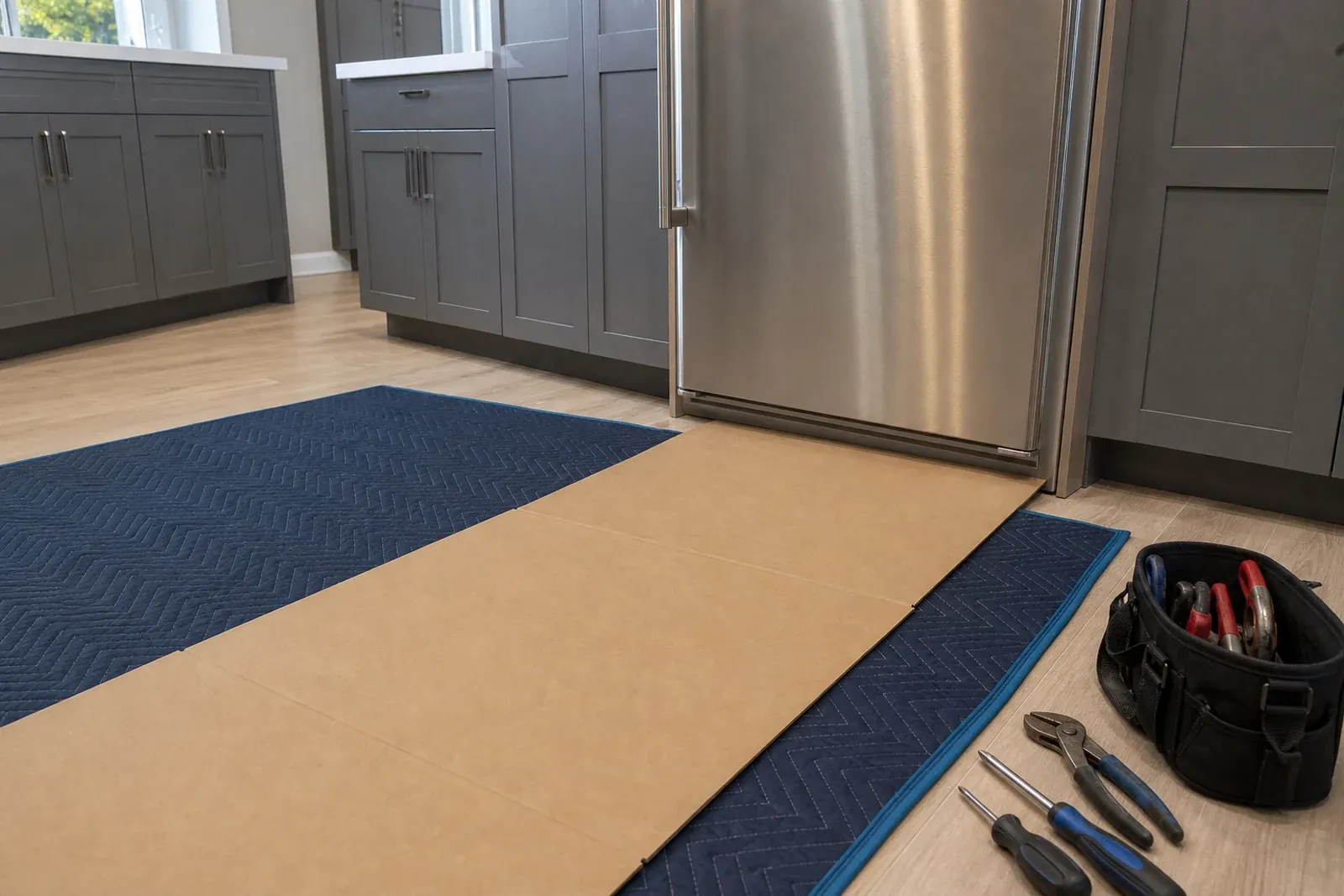

Panel-ready service, measured before quoted
A custom-paneled column does not have to come out of its run to be serviced. Most column repairs — evaporator fan motor, thermistor, damper, defrost components, drain clearing, gaskets — are done with the unit in place, floor protected, and the custom front untouched. We pull a column fully only when the sealed system genuinely requires it, and even then the panel comes off and goes back on with the same hardware.
Access in San Ramon is worth a quick word when you call. Dougherty Valley and Norris Canyon Estates homes often sit at the top of long, steep driveways, so we plan parking and a parts-cart path before arrival rather than blocking a narrow hillside approach. Gated and country-club streets in Canyon Lakes need a gate code or HOA visitor note up front so the visit is not held up at the entrance. And the older San Ramon Village ranch homes off the original 1960s tracts sometimes hide a tight, dated cabinet cutout around a newer panel-ready column, so a quick photo of the surround when you book tells us whether the run has the clearance we need to slide the unit. Sorting these details in advance is what turns a column repair into a single, clean trip instead of two.
Every visit is the same honest sequence: read the tag, measure actual temperatures and airflow, confirm the failed part, then approve a flat quote before any work begins. The diagnostic/service call runs $95–$150 and is credited toward the repair. Sealed-system work needs EPA Section 608 certification and may still be covered — Sub-Zero carries a 12-year manufacturer warranty on the compressor, condenser, evaporator, drier, and tubing, which we check before you pay for anything. See our technician process and the diagnostic and pricing detail, and book online or call (925) 940-3576.
Next step
Call with the Sub-Zero model number
Have the model-tag photo, current fresh-food and freezer temperatures, and the symptom timeline ready. That lets the San Ramon intake route the visit around the likely Sub-Zero part family instead of a generic appliance script.
FAQ
Questions San Ramon homeowners ask before scheduling
Where is the model tag on a Sub-Zero column refrigerator?
On Sub-Zero Designer Tall, Integrated, and IC-24 columns, the model/serial tag is inside the cabinet on the wall to the left of the upper drawer or shelf rail — not by the door hinge. Open the door and look high on the left interior sidewall. A clear phone photo of that plate lets us arrive at your San Ramon home with the right fan motor, thermistor, or gasket already in hand.
Why does my Sub-Zero column drift a few degrees?
A few degrees of drift on a column is almost always a dirty condenser, a weakening evaporator fan motor, or a thermistor reporting the wrong temperature to the board — not a dead compressor. In San Ramon, Diablo-wind dust and wildfire-season ash clog the condenser fast, so we clean and measure first. Give a repaired unit 24 hours to settle before judging temperatures. Call (925) 940-3576.
There is water pooling under my Sub-Zero column — what causes it?
Water on the floor under a column is the classic defrost-drain leak: the drain line clogs or freezes, so meltwater overflows instead of evaporating at the condenser pan. It is usually a $200–$500 fix, not a sealed-system failure. Clearing and re-routing the drain solves it. We diagnose the drain in place without pulling the panel — call (925) 940-3576.
Will the custom panel come off to service a Designer column?
Usually not. Most Designer and Integrated column repairs — evaporator fan, thermistor, damper, defrost parts, drain clearing, gaskets — are done with the column in place and the custom front untouched, floor protected. We only remove the panel and pull the unit when the sealed system truly requires it, and it reinstalls with the same hardware. Keeping your millwork intact is exactly why these are worth repairing.
Why do the interior lights shut off when I hold the column door open?
That is normal, by design. Sub-Zero columns disable the LED interior lighting after the door has been held open for a set time, to protect the LEDs and your food from heat — it is not a fault and needs no repair. Close the door and reopen it and the lights return. If the lights never come on at all, that is a separate issue we can check.
Are paired refrigerator and freezer columns one repair or two?
They are two independent systems. Each column — the all-refrigerator and the all-freezer — has its own sealed system, fan, and controls, so a warm refrigerator column tells us nothing about the freezer column beside it. We diagnose each separately and quote only what actually failed. Many San Ramon homes pair an IT-30 fridge column with an 18- or 24-inch freezer column. Call (925) 940-3576.
